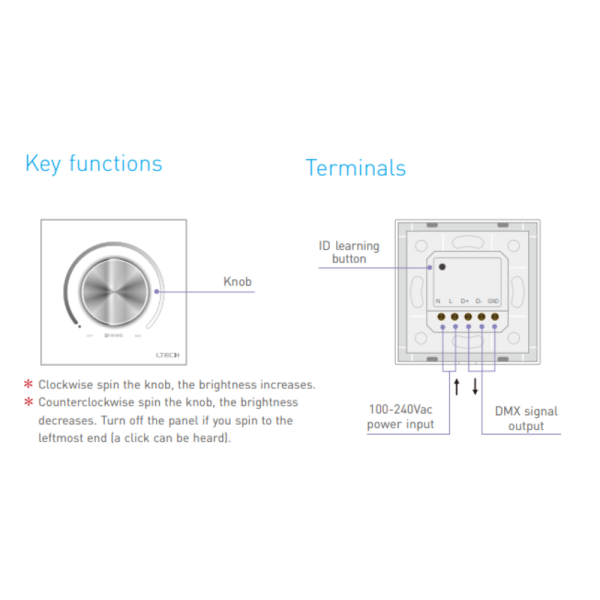

LTECH L-BUS EX_F-Series RF_DMX Rotary Dimming Panel Functions
LTECH L-BUS EX_F-Series RF_DMX Rotary Dimming Panel (1)
LTECH L-BUS EX_F-Series RF_DMX Rotary Dimming Panel Composition
LTECH L-BUS EX_F-Series RF_DMX Rotary Dimming Panel Sequence
LTECH L-BUS EX_F-Series RF_DMX Rotary Dimming Panel System Wiring
LTECH L-BUS EX_F-Series RF_DMX Rotary Dimming Panel Wiring

LTECH L-BUS EX/F-Series RF/DMX Rotary Dimming Panel

€61.72 inc. VAT

€50.18 excl. VAT

Compare
Availability: Normally a Stocked Item 1 day dispatch
  • quick overview
    • Adopt RF and wired DMX512 protocol 2 in 1 control mode, which is more flexible and convenient for project installation.
    • Any number of receivers can be connected within an effective range to maintain a synchronous effect.
    • With the function of dimming and switching.
    • The panel can be controlled by remote or by mobile phone if a gateway
  • product details
    Manufacturer LTECH
    SKU EX61
    Product Group LTECH L-BUS
    Product Type RF/DMX Rotary Dimming Panel
    Dimension (LxWxH) 86×86×50mm
    Input Voltage 100~240V AC
    Output Signal RF 2.4GHz, DMX512
    Colour Range Single Color
    Channels 1
    Zones 1
    Output Rating (A) N/a
    Output Rating (W) N/a
    IP20 IP20
    Operating Temperature -10℃~55℃
    Weight 235g

    LTECH L-BUS EX/F-Series RF/DMX Rotary Dimming Panel Adopt RF and wired DMX512 protocol 2 in 1 control mode, which is more flexible and convenient for project installation. Any number of receivers can be connected within an effective range to maintain a synchronous effect. With the function of dimming and switching. The panel can be controlled […]
