Availability:
Normally Stocked Item, 1 day dispatch
-
quick overview

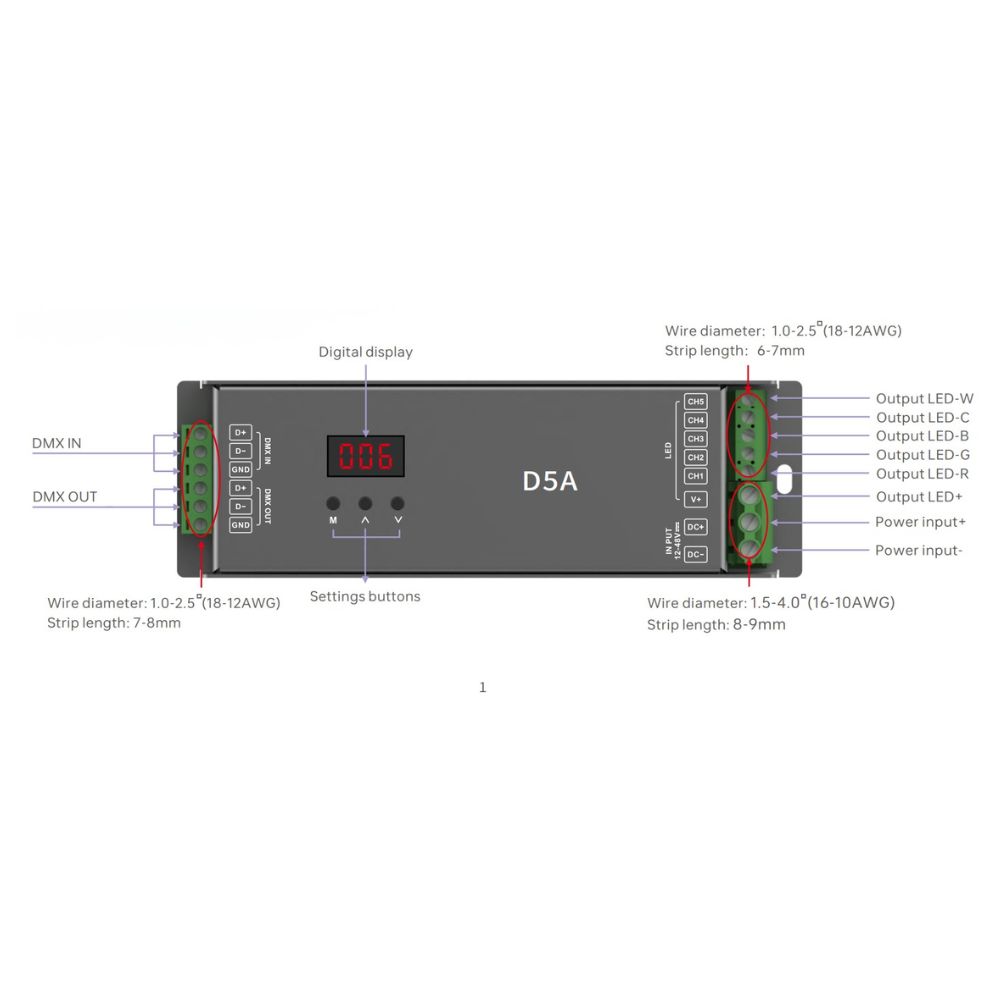

- Standard DMX/RDM interface with digital display and button setup
- RDM support for remote configuration via master or mobile app

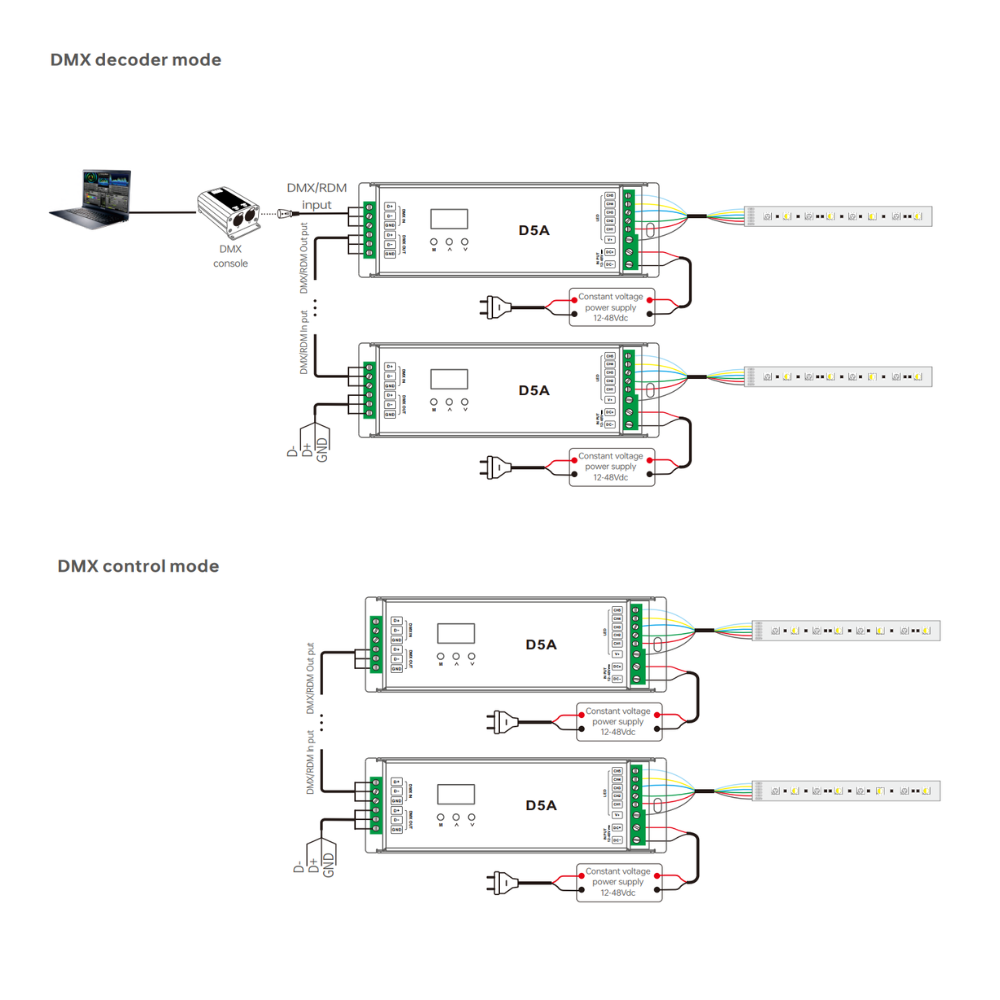

- Switchable DMX decoder and control modes
- Wide PWM frequency range (300Hz–18,000Hz)
- Optional 16-bit or 8-bit grayscale
- Linear or logarithmic dimming curve options
- Supports DIM, CCT, RGB, RGBW, RGBCW (1–5 channel output)
- 10 lighting effects with adjustable speed and brightness
- Adjustable screen settings (timeout, always-on, auto-off)
- Full protection: short-circuit, over-temp, over-current, reverse polarity
- D5A: green terminal DMX | D5B: RJ45 DMX
-
product details

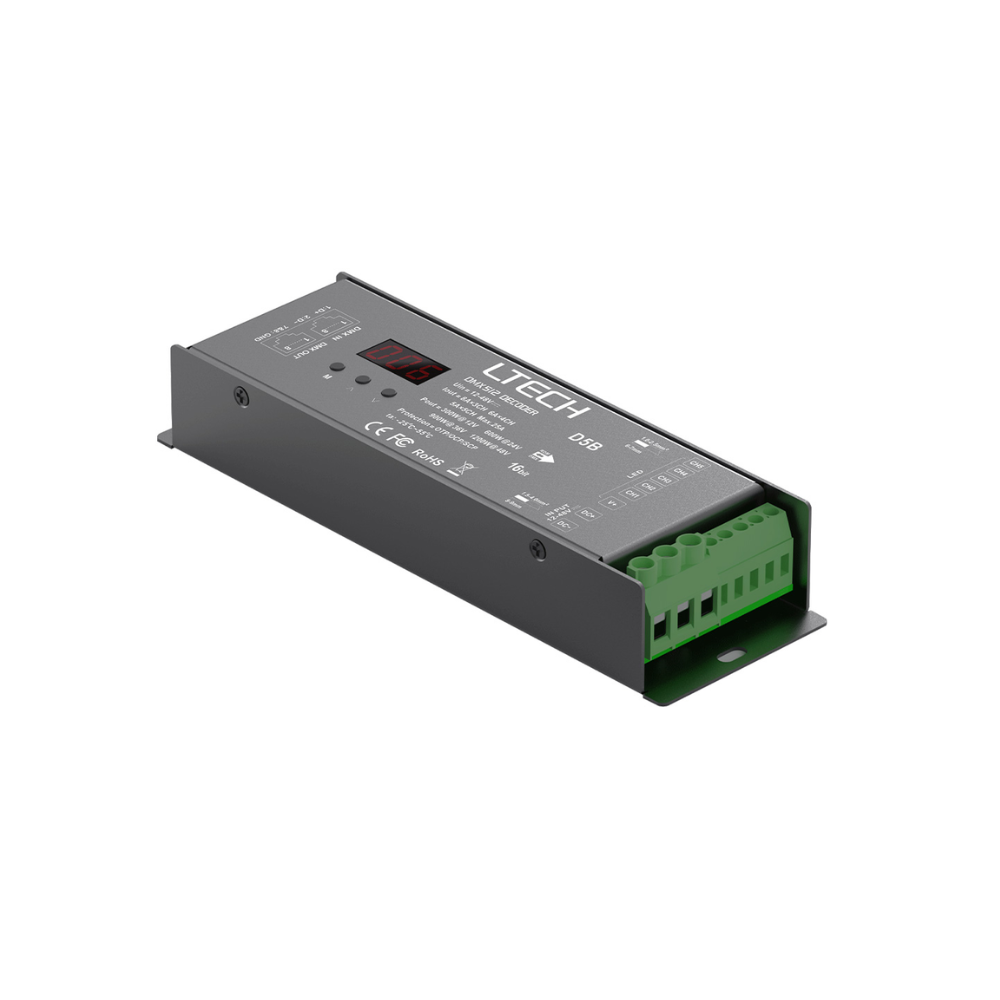

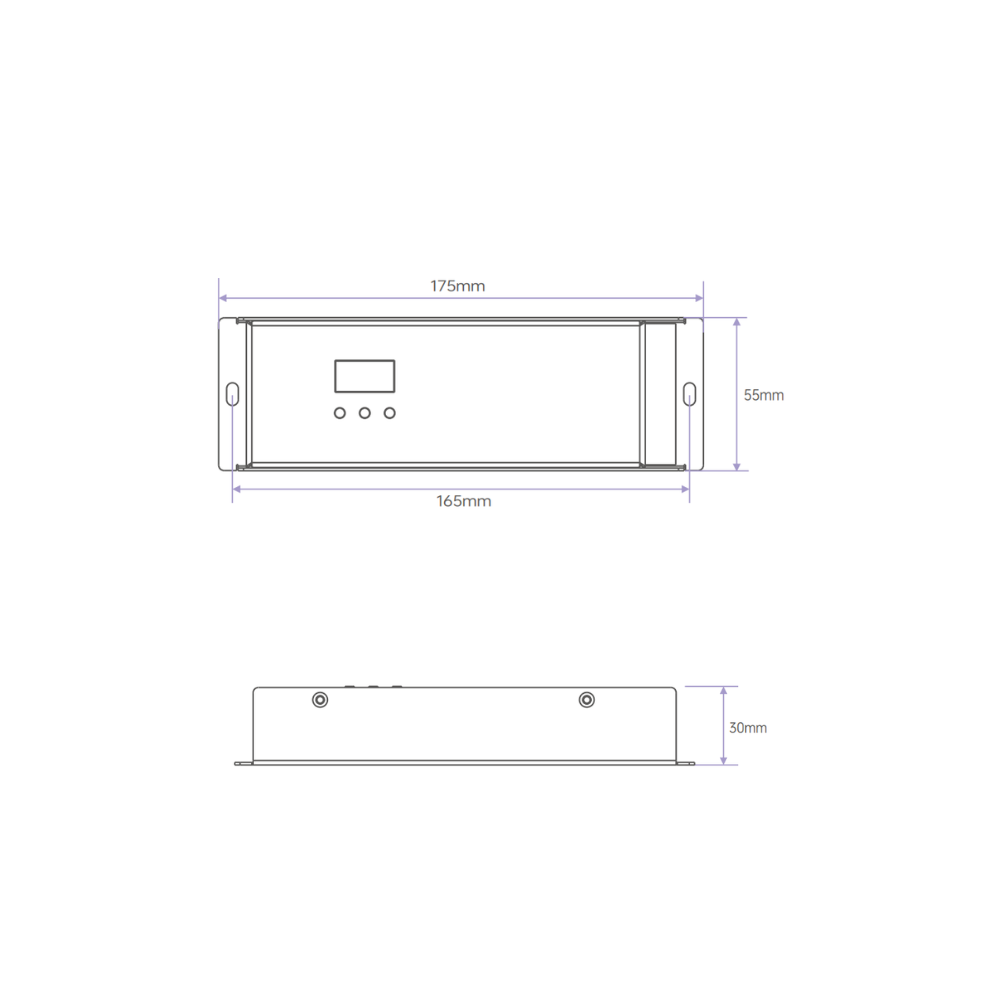

Manufacturer LTECH SKU D5A Input Signal 12-48V Output Type Constant Voltage Output Current • 8A×3CH • 6A×4CH • 5A×5CH • Max 25A Output Voltage 12-24V Output Power • 300W@12V • 600W@24V • 900W@36V •1200W@48V Dimming Range 0-100% Working Temp. -25 C-55 C Dimensions (LxWxH) 175×55×30mm LTECH DMX512 CV Decoder – 5 Channel 12–48V Standard DMX/RDM interface with digital display and button setup RDM support for remote configuration via master or mobile app Switchable DMX decoder and control modes Wide PWM frequency range (300Hz–18,000Hz) Optional 16-bit or 8-bit grayscale Linear or logarithmic dimming curve options Supports DIM, CCT, RGB, RGBW, RGBCW […]
